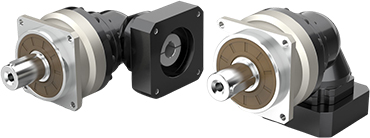

WVRBR

Overview
Technical Information
  • Planet gear carrier and output shaft are integrated structure designed to ensure maximum torsional rigidity.
  • Planet gear with fll needle design,increase the contact area to improve the rigidity and output torque.
  • The gears are carburized and quenched to the HRC62 with low carbon steel surface for optimum wear and impact toughness.
  • Gears refer to foreign imported software-assisted design to obtain the best tooth shape to reduce noise.
  • Adopt spiral bevel gear design,allow high output torque,more than 30% higher than straight bevel gear.
  • High allowable input speed,more than 8 times higher than straight bevel gear input.
  • Spiral bevel gears are meshed by optimum motion error analysis and strict process control to ensure high precision running backlash.
Features
Parameters
Directory
Product Features
  • Integrated output shaft
    Ensures maximum torsional rigidity
  • Full needle roller design
    Enhances structural rigidity and output torque
  • High Rigidity
    Gears are made of low-carbon steel with surface carburizing and quenching for optimal wear resistance and impact toughness.
  • High Precision
    Minimum backlash can be less than 1.5 arcmin
  • High Transmission Efficiency
    Compact Structure
Performance Parameter

Specification Unit Stage Ratio WVRBR060 WVRBR090 WVRBR115 WVRBR140 WVRBR180 WVRBR220
Rated output torqueT2N Nm 1 3 55 130 208 342 588 1140
4 50 140 290 540 1050 1700
5 60 160 330 650 1200 2000
6 55 150 310 600 1100 1900
7 50 140 300 550 1000 1700
8 50 140 290 542 1050 1450
10 60 160 330 650 1200 2000
12 55 150 310 600 1100 1900
14 50 140 300 550 1000 1700
20 35 90 200 400 760 1350
2 15 55 130 208 342 588 1140
25 60 160 330 650 1200 2000
30 55 130 208 342 588 1140
35 50 140 300 550 1000 1700
40 50 140 290 542 1050 1700
50 60 160 330 650 1200 2000
60 55 150 310 600 1100 1900
70 50 140 300 550 1000 1700
80 50 140 290 542 1050 1700
100 60 160 330 650 1200 2000
120 55 150 310 600 1100 1900
140 50 140 300 550 1000 1700
160 40 100 230 450 850 1450
200 35 90 200 400 760 1350
Emergency stop torque T2NOT Nm 1,2 3~200 Triple rated output torque
Rated input speed n1N rpm 1,2 3~200 5000 4000 4000 3000 3000 2000
Maximum iutput speed n1B rpm 1,2 3~200 10000 8000 8000 6000 6000 3500
Precision backlashP1 arcmin 1 3~20 ≤5 ≤5 ≤5 ≤5 ≤5 ≤5
2 15~200 ≤7 ≤7 ≤7 ≤7 ≤7 ≤7
Standard backlashP2 arcmin 1 3~20 ≤7 ≤7 ≤7 ≤7 ≤7 ≤7
2 15~200 ≤10 ≤10 ≤10 ≤10 ≤10 ≤10
Torsional rigidity Nm/arcmin 1,2 3~200 7 14 25 50 145 225
Allowable radial force F2aB N 1,2 3~200 1530 3250 6700 9400 14500 20000
Allowable axial force F2aB N 1,2 3~200 765 1625 3350 4700 7250 10000
Lifespan hr 1,2 3~200 20000
Efficiency % 1 3~20 95%
2 25~200 92%
Weight kg 1 3~20 2.1 6.4 13 24.5 51 68
2 25~200 1.5 7.8 14.2 27.5 54 72
Working temperature ℃ 1,2 3~200 -20℃-+40℃
Lubricating Synthetic lubricating greas
IP Grade 1,2 3~200 IP65
Installation direction 3~200 In any direction
Noise level (n1=3000rpm,off load) dB(A) 1,2 3~200 ≤63 ≤65 ≤68 ≤70 ≤72 ≤74
