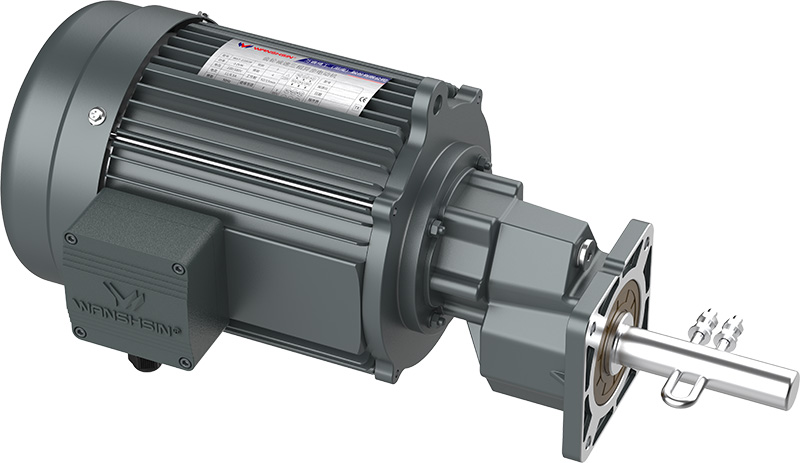

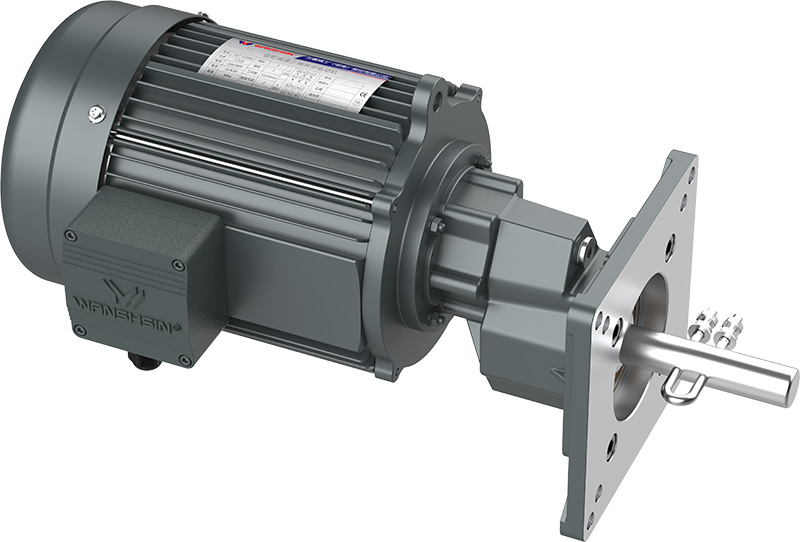

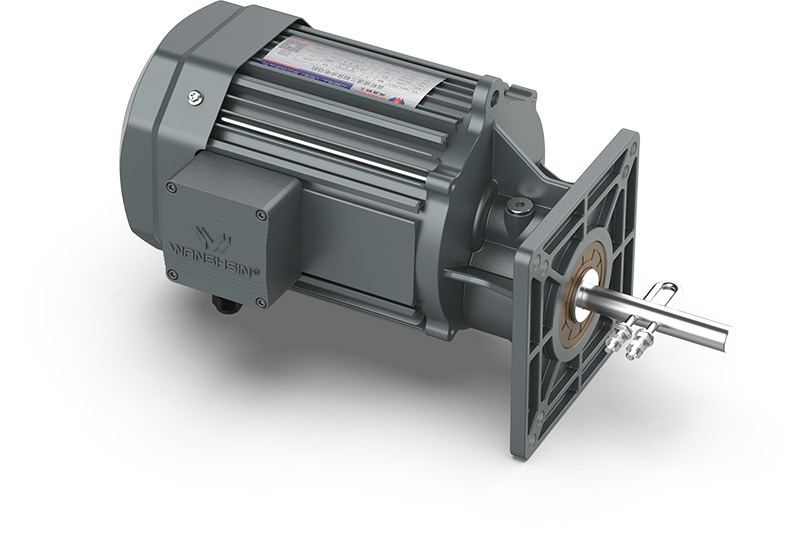

Poultry Farm Feeding Gear Motor

Overview
Technical Information
  • Strong load-bearing, using high-strength die-casting aluminum alloy shell and carburized hardness HRC62 gears.
  • Low noise, exquisite design, precision manufacturing, the noise is less than 65dB(A).
  • Maintenance-free, the whole machine is compact, the reducer is lubricated with grease, life-long maintenance-free.
Power 0.55~1.5kW
Voltage 220V-600V
Current 1.39/0.8A
Frequency 50/60Hz
Motor speed 1420/1730RPM
Phases Singel Phase/Three Phase
Poles 4 Poles
Working duty Standard S1
Insulation class F
Protection class IP55
Ratio 3,4,5
Output shaft diameter 19-25mm (Support customization)
Features
Parameters
Directory
Product Features
  • 1
    Small size
  • 2
    Light weight
  • 3
    Low noise
  • 4
    Maintenance free
  • 5
    Corrosion resistant
Performance Parameter

Parameters of motor
POWER POWER TYPE CURRENT STARTING
CAPACITOR 		RUNNING
CAPACITOR
550W 3/4HP Three-phase 220V/2.6A 380V/1.8A 300μF 30μF
Single-phase 110V/7.6A 220V/3.8A
750W 1HP Three-phase 220V/3.6A 380V/2.1A 400μF 40μF
Single-phase 110V/9.0A 220V/4.5A
1100W 1.5HP Three-phase 220V/3.8A 380V/2.2A 300μF 40μF
Single-phase 110V/11.0A 220V/6.0A
1500W 2HP Three-phase 220V/6.8A 380V/4.0A 400μF 40μF
Single-phase 110V/20.0A 220V/10.0A
